APP_MAP — Cisco IOS XE OpenAPI / YANG Documentation Hub

Generated: 2026-06-09 from source inspection of HTML/JS/JSON in the repo root.
Confirmed = present in checked-in files. Inferred = derived from naming/usage but
not directly read end-to-end. See "Unknowns" at the bottom.

1. Executive Summary

At-a-glance:
Slide-ready PNG (docs/exec_summary.png) — 1920×1080,
generated by scripts/build_exec_visual.py.

This workspace is a static, GitHub-Pages-hosted documentation site (no backend, no framework) for the Cisco IOS XE programmability surface. It compiles every YANG model into per-category OpenAPI 3.0 specs, renders them via Swagger UI, and adds purpose-built JS tools on top: universal search, code generation, YANG tree diff, telemetry XPath authoring, accountability/coverage reports, and per-platform support matrices.

Key facts:

• Hosting: GitHub Pages, scope /cisco-ios-xe-openapi-swagger/.
• Releases tracked: 26.1.1 (default), 17.18.1, 17.15.x, 17.12.x, 17.9.x (releases/index.json).
• Top-level pages: 9 user-facing HTML + 1 404 + 2 redirector stubs + 9 Swagger UI viewers (one per model category).
• No build system: vanilla JS, strict CSP, Swagger UI from jsDelivr; data is generated offline by Python scripts under generators/ and scripts/.
• PWA: service worker (service-worker.js) precaches the shell; releases/**, archive/**, tools/** are explicitly bypassed.
• Deep linking: every interactive page persists state in URL hash/query (#spec=, #op=, #ver=, #left=, #right=, q=, cat=, status=).

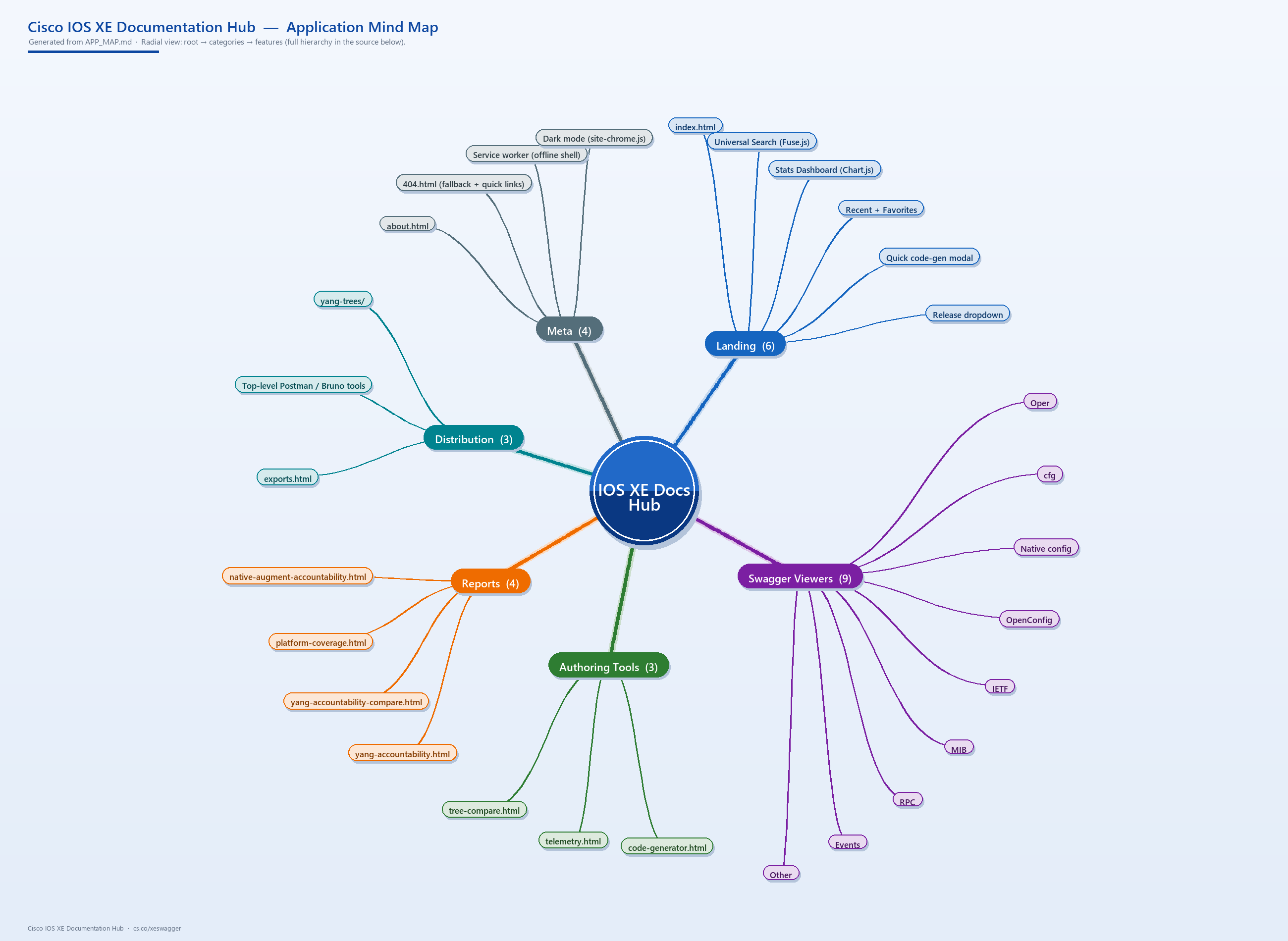

2. Mind Map (Mermaid)

mindmap
  root((IOS XE Docs Hub))
    Landing
      index.html
      Universal Search (Fuse.js)
      Stats Dashboard (Chart.js)
      Recent + Favorites
      Quick code-gen modal
      Release dropdown
    Swagger Viewers
      Oper
      Config (cfg)
      Native config
      OpenConfig
      IETF
      MIB
      RPC
      Events
      Other
      ::sub
        YANG container tree sidebar
        Module search
        Download spec JSON
        Platform badges
        MDT xpath side card
        Deep-link by spec+op+ver
    Authoring Tools
      code-generator.html
        cURL / Python / Ansible / JS
        Spec & path pickers
      telemetry.html
        Release / category / module
        Derived xpath table
        Subscription template
        CSV export
      tree-compare.html
        Two-module diff
        Sync scroll
        Highlight diffs
        Export / share link
    Reports
      yang-accountability.html
        1103-module matrix
        Status & classification filters
        CSV + plain-text export
      yang-accountability-compare.html
        Cross-version matrix
        Summary cards
        API growth table
        Deltas (added / removed)
      platform-coverage.html
        Module x platform matrix
        Family color coding
        CSV export
      native-augment-accountability.html
        163 native augments
        Tree vs Swagger pivot
    Distribution
      exports.html
        Per-release Postman shards
        Per-release Bruno workspaces
        Environment file
      Top-level Postman / Bruno tools
      yang-trees/
        index.html (redirect to release)
        mib-trees-index.html (redirect)
        Per-release pyang HTML trees
    Meta
      about.html
      404.html (fallback + quick links)
      Service worker (offline shell)
      Dark mode (site-chrome.js)

3. Page Inventory

Files use workspace-relative paths. "Scripts" lists JS dependencies; shared chrome (assets/js/site-chrome.js, assets/js/sw-register.js) is loaded on most pages and is not repeated below.

3.1 index.html — Documentation Hub (Landing)

• Route: / (index.html)
• Purpose: Entry point; surfaces every model category, a universal search box, stats dashboard, Recents/Favorites, and downloads.
• UI:
  • Header with dark-mode toggle, release selector (#versionSelector), badge.
  • Quick-nav toolbar linking to every top-level page and each Swagger viewer.
  • 9 color-coded model cards with per-category spec / path / op counts.
  • Universal Search (#universalSearch) with autocomplete, advanced filters (prefix, has-tree, has-spec), type filters, results panel.
  • External docs & downloads gradient blocks (Postman collections, env file).
  • Statistics dashboard — pie chart + table (Chart.js) per model.
  • Project summary info boxes and stat grid.
  • Code Snippet Generator modal (#codeGenModal) — quick curl/Python/Ansible/JS.
• Data sources: search-index.json (or releases/<ver>/search-index.json), version-stats.json, per-category _paths_index.json.
• Scripts: Fuse.js (CDN), Chart.js (CDN), search.js, recent-favorites.js, index-app.js, hub-search-ops.js.
• Permissions: None — static.
• Notes / TODO: Static "Last Updated: April 25, 2026" string in markup (#L325-ish); stat counts in cards are static numbers but other figures are hydrated from version-stats.json.

3.2 about.html — About / Project Mission

• Route: /about.html
• Purpose: Narrative explanation of the project, capabilities, releases, architecture, contribution and feedback channels.
• UI: Static sections (#mission, #stats, #capabilities, #releases, #architecture, #engage, #credits), CTA buttons linking to GitHub Issues / CONTRIBUTING / CHANGELOG.
• Data sources: Static counts (608 specs, 37,072 paths, etc.) — inferred to be hand-maintained and may drift from version-stats.json.
• Scripts: site-chrome only.

3.3 code-generator.html — API Code Generator

• Route: /code-generator.html
• Purpose: Generate curl, Python (requests), Ansible, JavaScript (fetch) snippets for any RESTCONF call.
• UI: Form (host, method, path, username, password, body) + spec picker (#specPicker) + path picker (#pathPicker) populated from the active release's search index. "Generate Code", "Clear", "Copy Share Link" buttons. Tabbed output pane with per-language copy buttons.
• Data sources: search-index.json and per-spec OpenAPI JSON under releases/<ver>/swagger-*-model/api/<name>.json.
• Scripts: deeplink.js, code-generator.js.
• Deep-link hash: #ver=&category=&spec=&path=&method=.

3.4 tree-compare.html — YANG Tree Comparison

• Route: /tree-compare.html
• Purpose: Side-by-side diff of two YANG trees (any module × any module).
• UI: Two <select>s (#module1, #module2), per-side filter boxes (#searchLeft, #searchRight), Compare button, stats bar (total/matched/ added/removed/modified), legend, split-pane viewer, Sync Scroll, Highlight Diffs, Export, "Copy as Text", "Copy Share Link". Dark mode toggle (floating).
• Data sources: releases/<ver>/search-index.json; per-tree HTML/text under releases/<ver>/yang-trees/.
• Scripts: version-label.js, tree-compare.js.
• Deep-link hash: #left=&right=&ver=.
• Persistence: localStorage key iosxe-tree-compare-prefs for toggle state.

3.5 yang-accountability.html — Module Accountability Report

• Route: /yang-accountability.html
• Purpose: Per-release map of every YANG module → spec / tree / excluded-reason (claims 100% coverage). Search, filter, sort, paginate, export.
• UI: Summary stat grid, Category Summary table, search box, classification + status filter rows, module matrix table (pagination, sortable headers), "Export CSV", "Copy as Text", "Copy Share Link", exclusion-categories explainer.
• Data sources: yang_accountability.json (root, legacy) or releases/<ver>/yang_accountability.json.
• Scripts: version-label.js, deeplink.js, yang-accountability.js.
• Deep-link hash: #ver=&q=&cat=&status=.

3.6 yang-accountability-compare.html — Cross-Version Matrix

• Route: /yang-accountability-compare.html
• Purpose: Cross-release module presence matrix + API growth table + version-to- version deltas.
• UI: Summary cards per release, growth table (Specs / Paths / Ops / Δ), presence filter (all, any, all-versions, diff), search filter, CSV export, module matrix with pip markers (spec / tree / absent), deltas section.
• Data sources: accountability_compare.json, version-stats.json.
• Scripts: inline (no external module beyond site-chrome).

3.7 telemetry.html — MDT XPath Builder

• Route: /telemetry.html
• Purpose: Compute gRPC dial-out filter xpath for any (release, category, module, OpenAPI path) per the formula in MDT_XPATH_SPEC.md: /<prefix>:<path-without-leading-slash>.
• UI: Release/category/module pickers, path filter, info card, results table (Method / OpenAPI path / Derived xpath / copy), CSV export, subscription configuration template with Copy.
• Data sources: yang-prefix-map.json (or per-release), per-spec OpenAPI JSON.
• Scripts: version-label.js, telemetry.js.

3.8 exports.html — Postman / Bruno Exports

• Route: /exports.html
• Purpose: Browse and download per-(release, model-category) export shards; pre-built to stay under ~50 MB import limits.
• UI: Release filter, format toggle (All / Postman only / Bruno only), per- release blocks with collection tables, environment-file link, helpful empty state pointing at scripts/build_release.py.
• Data sources: releases/index.json, releases/<ver>/exports/postman-manifest.json, releases/<ver>/exports/bruno-manifest.json.
• Scripts: inline (release iteration + table builder).

3.9 platform-coverage.html — YANG × Platform Matrix

• Route: /platform-coverage.html
• Purpose: Show which IOS XE platforms (Catalyst families, IoT, wireless, etc.) expose each YANG module — derived from NETCONF capability files per release.
• UI: Release dropdown, free-text filter, platform dropdown, "Export CSV", scrollable matrix table with color-coded platform headers (switching, routing, iot, wireless, other).
• Data sources: platform-support-index.json, releases/<ver>/platform-support.json.
• Scripts: assets/js/platform-coverage.js.
• CSP note: Page declares its own CSP (no external hosts).

3.10 yang-trees/index.html — Redirector

• Route: /yang-trees/
• Purpose: Reads releases/index.json and window.location.replaces to ../releases/<default>/yang-trees/. Pure compatibility shim — legacy href="yang-trees/" links keep working.
• UI: Single message and a manual fallback link.

3.11 yang-trees/mib-trees-index.html

• Same pattern as 3.10, redirects to releases/<default>/yang-trees/mib-trees-index.html.

3.12 404.html — Not Found

• Route: served for unknown paths by GitHub Pages.
• UI: Static "404", main hub link, color-coded quick-links to all 9 viewers.
• Scripts: sw-register only.

3.13 [swagger-{oper,cfg,native-config,openconfig,ietf,mib,rpc,events,other}-model/index.html]

• Route: /swagger-<category>-model/index.html — one per category.
• Purpose: Swagger UI 5.31.0 viewer over the active release's releases/<ver>/swagger-<category>-model/api/*.json specs.
• UI:
  • Dark category header with version pill (.header-version).
  • Nav bar linking to all 9 viewer categories + Hub + Trees.
  • Sidebar: search box, stats (Specs / Paths / Ops), recursive YANG container tree built by yang-tree-sidebar.js.
  • Main: welcome card, download bar ("Download JSON", tree link, MDT panel toggle, "Copy Share Link"), platform badges (platform-support.js), MDT panel, Swagger UI container.
• Scripts: Swagger UI bundle + standalone-preset (CDN), deeplink.js, yang-tree-sidebar.js, assets/js/platform-support.js, paths-search.js (per-viewer, present alongside each index.html).
• Version awareness: Hard-coded __IOSXE_DEFAULT_VER__ and __IOSXE_ALLOWED_VERS__, baked by scripts/patch_viewers_version_aware.py.
• Deep-link hash: #ver=&spec=&op=.

3.14 swagger-native-config-model/capabilities.html

• Sub-page of the native viewer. Per-category capability table (paths, ops, schemas, leafs, lists, choices) sourced from releases/<ver>/native-capabilities.json. Release picker + filter + counts.

3.15 swagger-native-config-model/native-augment-accountability.html

• Inferred-stale: header says "IOS XE 17.18.1 | Phase 2 Complete", numbers are static (163 augments, 146 with trees, 151 with Swagger). Not wired to the release selector. Marked Needs verification for whether it is still linked from the UI.

3.16 swagger-*-model/index-v2.html (×9)

• Tiny redirect stubs (<title>Redirecting</title>). Forward to the current index.html. Safe to ignore; keep as URL stability shims.

3.17 Per-release tree pages

• releases/<ver>/yang-trees/index.html — release-scoped tree browser with a filter box and a card per YANG module that links to <module>.html.
• releases/<ver>/yang-trees/<module>.html — pre-rendered pyang tree per module (HTML). Hundreds per release.
• releases/<ver>/yang-trees/mib-trees-index.html — MIB tree index variant.

4. Feature Inventory

Grouped by capability, not by page.

4.1 Multi-release version switching

• What: Single "active release" concept (26.1.1 default) drives every data fetch — ?ver=, #ver=, localStorage['iosxe-active-version'], or the parent hub's window.__IOSXE_ACTIVE_VERSION__.
• Where: #versionSelector on hub; injected per-viewer dropdown by assets/js/viewer-enhancements.js; silent inheritance everywhere else.
• Implements: version-label.js, __activeVer() in each Swagger viewer, yang-accountability.js _activeVersion(), code-generator.js, telemetry.js, tree-compare.js, search.js loadSearchIndexForActiveVersion().
• Data: releases/index.json (default + allow-list).

4.2 Universal search (hub)

• What: Fuse.js fuzzy search across all modules with autocomplete, type filters, advanced filters, sort, related modules.
• Where: Hub #universalSearch + autocomplete + results pane.
• Implements: search.js (debounced, configurable SEARCH_CONFIG), hub-search-ops.js (lazy per-category operation-level hits via _paths_index.json).
• Data: search-index.json, per-category releases/<ver>/swagger-<cat>-model/api/_paths_index.json.

4.3 Swagger UI rendering & deep-linking

• What: Each model category is a separately-rendered Swagger UI 5.31.0 viewer. Deep links of the form #spec=<module>&op=<operationId>&ver=<release> open and expand a specific operation.
• Where: All 9 swagger-*-model/index.html files.
• Implements: deeplink.js (parseHash, setSpec, setSpecOp, tryExpandOp, MutationObserver auto-expand, click delegate to capture op IDs).
• Helpers: yang-tree-sidebar.js builds the recursive container tree from each module's pathList / pathOps.

4.4 Code-generation (curl / Python / Ansible / JS)

• What: Two delivery surfaces — the Quick Snippet modal on the hub (index-app.js wires the form), and the full code-generator.html page which can pre-select a real spec + path and reuse RFC 7951 example bodies.
• Implements: code-generator.js; per-language template generators with shareable URLs.

4.5 MDT XPath authoring

• What: Derive gRPC dial-out filter xpath for any operation, copy/share, and emit a subscription config template.
• Where: telemetry.html; a compact "MDT XPaths for this module" side card embedded in each Swagger viewer.
• Spec: MDT_XPATH_SPEC.md.
• Implements: telemetry.js.
• Data: yang-prefix-map.json, per-spec OpenAPI files, releases/<ver>/telemetry-index.json.

4.6 YANG tree side-by-side compare

• What: Pick two modules, render their pyang trees, diff (added / removed / modified), sync-scroll, highlight, export, share.
• Where: tree-compare.html.
• Implements: tree-compare.js.

4.7 Accountability reports

• Single-version: yang-accountability.html (1100+ module matrix, filters, CSV, pagination).
• Cross-version: yang-accountability-compare.html (presence matrix, API growth, deltas).
• Native-augment-specific (legacy/static): swagger-native-config-model/native-augment-accountability.html.
• Data producers (inferred from comments): scripts/build_accountability_compare.py, scripts/build_version_stats.py.

4.8 Platform coverage matrix

• What: YANG-module × platform-id table per release, derived from NETCONF capability files. Family color coding, CSV export.
• Where: platform-coverage.html.
• Implements: assets/js/platform-coverage.js.
• Per-spec badges: assets/js/platform-support.js reuses the same JSON to render chips inside each viewer.
• Data: platform-support-index.json, releases/<ver>/platform-support.json.

4.9 Postman / Bruno exports

• What: Pre-built per-(release, category) shards (≤50 MB each) + environment files. Top-level repo also ships the big legacy collections under tools/ (linked from the hub).
• Where: exports.html; hub Downloads section.
• Producer: scripts/build_release.py (referenced in the empty state).
• Manifests: releases/<ver>/exports/{postman,bruno}-manifest.json.

4.10 Recent & Favorites

• What: LocalStorage-backed recently-viewed list and "starred" modules per user. Star entries persist op + ver so re-opens land on the same operation in the same release.
• Implements: recent-favorites.js (storage keys iosxe-recent-modules, iosxe-favorite-modules).
• Where: Hub Recents/Favorites cards.

4.11 Dark mode / theming

• Where: Every page. Two legacy mechanisms unified into one toggle.
• Implements: assets/js/site-chrome.js (data-theme attribute + body.dark class + prefers-color-scheme fallback).

4.12 PWA / Offline shell

• What: Service worker precaches the static shell, stale-while-revalidates HTML/JS/CSS, bypasses releases/, archive/, tools/, and all cross-origin.
• Implements: service-worker.js (CACHE_VERSION = v30-… acts as cache kill-switch).
• Registrar: assets/js/sw-register.js (loaded on every page).

4.13 SEO + structured data

• Every top-level page has injected og:, twitter:, JSON-LD WebSite / BreadcrumbList, canonical URL. Injection comment markers <!-- BEGIN seo-meta (managed by scripts/inject_seo_meta.py) -->.

4.14 Share links / "Copy Share Link" buttons

• All interactive pages serialize their current state into URL hash/query and copy it to clipboard via Copy Share Link controls.

5. User Flows

5.1 First-time landing

1. User opens /. Service worker installs.
2. index-app.js restores theme, populates release dropdown from releases/index.json, fetches releases/<active>/search-index.json (fallback: root).
3. Pie chart + stats hydrate from version-stats.json.
4. Recent/Favorites populate from localStorage.

5.2 Universal search → spec

1. User types into #universalSearch (or presses / / Ctrl+K).
2. search.js debounces, runs Fuse query, renders cards.
3. hub-search-ops.js lazily fetches per-category _paths_index.json to surface operation-level matches.
4. Clicking a result opens swagger-<cat>-model/index.html#spec=<module>&op=<id>&ver=<ver>.
5. Viewer's deeplink.js auto-expands the matching operation row.

5.3 Build & share a code snippet

1. User opens code-generator.html.
2. Picks a spec + path (or types a path manually), sets host/method/body.
3. Generated snippets render in 4 language tabs with Copy buttons.
4. "Copy Share Link" copies a URL containing #ver=&category=&spec=&path=&method=.

5.4 Diff two YANG trees

1. User opens tree-compare.html (often via "Compare" on a tree page that pre-fills one side).
2. Picks left + right modules.
3. Stats bar + legend + side-by-side panels update; user toggles Sync Scroll / Highlight Diffs (preferences persisted to localStorage).
4. Exports, copies as text, or shares via #left=&right=&ver=.

5.5 Author an MDT subscription

1. User opens telemetry.html. Picks release/category/module.
2. Table populates with each OpenAPI path and its derived filter xpath.
3. Clicking a row populates the subscription template; Copy or CSV-export.

5.6 Accountability deep dive

1. User opens yang-accountability.html — sees the stat grid, category summary, paginated module matrix.
2. Searches/filters by classification/status, exports CSV, copies as text, or shares the exact filtered view via hash.
3. For cross-release context, jumps to yang-accountability-compare.html.

5.7 Platform coverage check

1. User opens platform-coverage.html.
2. Picks a release, optionally filters by module substring or specific platform.
3. Sees the matrix; exports CSV.

5.8 Bulk download

1. User opens exports.html.
2. Filters by release + format, downloads shards + environment file.

5.9 Error / empty / loading states

• Loading: Sidebar shows Loading..., hub stats show —, tree panes show empty-state cards with help text.
• Empty: Exports page hides itself and shows "Run python scripts/build_release.py --version <v>"; capabilities page shows similar guidance.
• Network: Service worker stale-while-revalidate; viewer toast helper (window.__showViewerToast) for spec-load failures (assets/js/viewer-enhancements.js).
• CSP block: Hub fallback message replaces chart canvas with text status if Chart.js fails to load (index-app.js _renderChartFallback).
• 404: 404.html with quick links to every viewer.

6. Data / API Dependencies

All "APIs" are static JSON fetched over HTTP — no backend.

External: Microsoft Clarity telemetry to *.clarity.ms (always-on in this deployment). Every core third-party UI library is still vendored under assets/vendor/ with SHA-384 SRI verification (Swagger UI 5.31.0, fuse.js 7.0.0, chart.js 4.4.0). No CDN or web-font dependencies for the site shell itself. See docs/SELF_HOSTING.md.

LocalStorage keys observed:

• theme
• iosxe-active-version
• iosxe-recent-modules
• iosxe-favorite-modules
• iosxe-tree-compare-prefs

URL/hash params recognized:

• ?ver=, #ver= (every page)
• #spec=, #op= (Swagger viewers, recent-favorites round-trip)
• #left=, #right= (tree-compare)
• #q=, #cat=, #status= (yang-accountability)
• #ver=&category=&spec=&path=&method= (code-generator)

7. Unknowns & Recommended Follow-up

Items flagged Needs verification or that fell outside this static read:

1. Stale static numbers — RESOLVED (2026-06-16). about.html now hydrates its "By the numbers" cards from version-stats.json via about-stats.js (data-stat-about hooks), and index.html hub cards, category table, search placeholder, project-summary boxes and "Last Updated" date are all synced to the 26.1.1 default (988 specs / 82,856 paths / 246,677 ops / 1,469 tracked modules) via data-stat-* hydration. Static markup remains only as no-JS fallbacks.
2. native-augment-accountability.html — REVIEWED, KEPT (2026-06-16). Labelled "Phase 2 Complete / IOS XE 17.18.1"; has no live inbound links (reachable only by direct URL). Left in place rather than moved/deleted to avoid breaking external bookmarks; the canonical, version-aware reports are yang-accountability.html and yang-accountability-compare.html.
3. per-spec paths-search.js — referenced from every Swagger viewer but not read here; assume per-category enhancer mirroring hub-search-ops.js.
4. archive/ vs live pages — archive/debug.html, archive/test-stats.html, archive/test-swagger.html exist; sitemap and nav exclude them, service-worker bypasses archive/. Confirm none are still reachable.
5. index-v2.html redirect stubs — KEPT (2026-06-16). The 9 swagger-*-model/index-v2.html files are intentional zero-delay redirect stubs (preserving #hash/?query) that catch old external bookmarks to the legacy -v2 filenames. Not in the sitemap, nav, or service-worker precache, so they add no user-facing noise; retained as inbound-link safety nets.
6. Auth model — Not applicable (static site), but the code-generator.html form ships a default password (cisco123) and the hub modal embeds the same. Confirm acceptable for a public DevNet sandbox; do not let real credentials get autofilled by browsers.
7. Telemetry-index data flow — releases/<ver>/telemetry-index.json and telemetry-skipped.json exist on disk but the consumption path inside telemetry.js was not traced end-to-end here.
8. Search index drift — RESOLVED (2026-06-16). search.js prefers releases/<ver>/search-index.json but falls back to the root file; scripts/generate_search_index.py rebuilds the root search-index.json from releases/<default_version>/ on every run, so the fallback always matches the default release (no mismatch for users who land mid-deploy).
9. hub-search-ops.js baked TARGET_VER = '26.1.1' as a fallback — RESOLVED (2026-06-16). scripts/patch_viewers_version_aware.py now re-stamps the constant from releases/index.json's default, so it advances automatically with the default release.
10. MIB-specific UI — references to mib-metadata.json and mib-platform-matrix.json suggest extra side cards in the MIB viewer not fully captured here.
11. Documentation drift — PROJECT_REQUIREMENTS.md, QUICK_REFERENCE.md, ASSURANCE_SPEC.md, MDT_XPATH_SPEC.md, VERSIONING.md, GITHUB_PAGES_DEPLOY.md, YANG_MODULE_ACCOUNTABILITY.md, FAQ.md, CONTRIBUTING.md, AGENTS.md, CHANGELOG.md all coexist at the root. Confirm which are authoritative.

8. Cleanup / Consolidation Suggestions

Where the audit found duplication, drift, or unfinished surface area.

1. Single source of truth for headline counts. DONE (2026-06-16). Every "specs / paths / ops / modules" number in about.html and the hub project-summary / category-table sections is now bound to version-stats.json via data-stat-* hooks (about-stats.js / index-app.js). The "April 25, 2026" / "608 specs" drift is resolved.
2. Retire index-v2.html stubs — KEPT (2026-06-16). Documented above as intentional inbound-link redirect safety nets; not deleted.
3. Consider moving native-augment-accountability.html into archive/ — REVIEWED, KEPT (2026-06-16). No live inbound links (direct-URL only) and pins to 17.18.1. Left in place to avoid breaking external bookmarks; the canonical, version-aware reports are yang-accountability.html and yang-accountability-compare.html.
4. Centralize the version-detect helper. Five files re-implement _activeVersion() (search.js, yang-accountability.js, code-generator.js, telemetry.js, tree-compare.js, each Swagger viewer). One shared helper in assets/js/ would prevent subtle behavioural drift. (2026-06-16: hardened against the concrete drift risks rather than forcing a sweeping cross-page refactor — (a) the localStorage key-capitalisation bug in code-generator.js (iosxeActiveVersion vs canonical iosxe-active-version) is fixed; (b) hub-search-ops.js's baked TARGET_VER fallback is now re-stamped from releases/index.json by scripts/patch_viewers_version_aware.py so it can no longer go stale when the default advances; (c) that patch script's build_helper was itself stale — it would have re-introduced a removed default-version api/ short-circuit (404s) and a space-form Cisco IOS XE title regex that no longer matches the hyphenated Cisco IOS-XE viewer titles — now corrected so the generator is idempotent against the live viewers; (d) yang-accountability.js's _activeVersion() was missing the localStorage fallback tier, so a direct visit to yang-accountability.html after picking a non-default release on the hub silently fell back to the root default — normalised to the canonical ?ver= → #ver= → hub global → localStorage precedence used by code-generator.js / tree-compare.js.)
5. Promote per-viewer inline CSS into shared stylesheets. tree-compare.html, platform-coverage.html, exports.html, and yang-accountability-compare.html each carry hundreds of lines of inline CSS that duplicate assets/css/site.css.
6. Document the data/build pipeline. A simple Mermaid diagram showing generators/*.py → releases/<ver>/** and scripts/build_*.py → root JSON indexes would let new contributors trace any number on the site back to the script that produced it.
7. Audit the archive folder. It mixes one-off debug HTML, completed-phase TODO docs, and stale JSON. A pass to delete vs. preserve would shrink the service-worker bypass list and search-index noise.
8. Standardize "Copy Share Link" behaviour. Buttons appear on the hub, viewers, accountability, code-generator, tree-compare. Each implementation serializes a slightly different param set; a shared helper would help.

End of APP_MAP.md
